When sourcing an LPG cylinder valve for a South American project, the starting point is often the cylinder and regulator already in use. Inlet threads, outlet geometry and available installation space all affect whether a valve can be fitted to the existing system. Shanghai Luzhen supplies this Brazil-type brass valve as one configuration for LPG applications, with further model development available for customers working to other regional requirements.

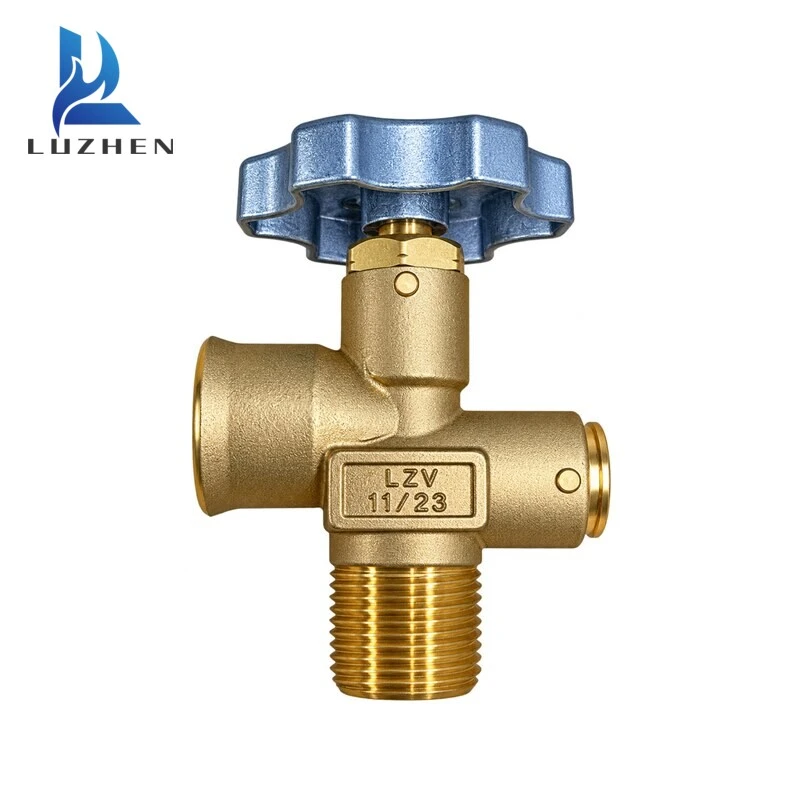

Brazil-Type Configuration
- Gas: LPG
- Valve body: Brass

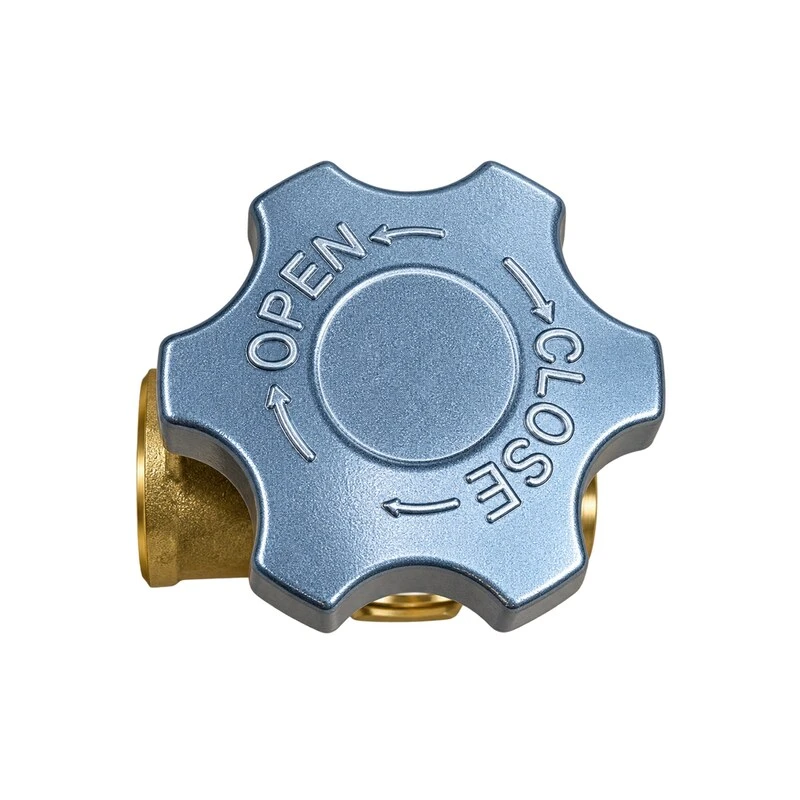

- Handwheel: Aluminum
- Operation: Manual
- Nominal pressure marking: 2.0 MPa NOM
- Pressure-relief setting: 375 psi
- Flow-rate marking: 10 m³/min
- Connection arrangement: To be matched with the specified cylinder and regulator system
The pressure and flow values describe different parameters. The 2.0 MPa NOM value is the nominal pressure marking, 375 psi is the pressure-relief setting, and 10 m³/min is the flow-rate marking. They should be assessed according to the selected valve specification and intended cylinder system.
Model Development for South American Projects
A standard model may not suit every cylinder platform. To support customers in Brazil and across South America, we can review an existing valve drawing or physical sample and develop a suitable model for evaluation. This is useful when a project needs to retain the customer's current cylinder-neck interface, regulator connection or installation envelope.
Depending on the application, development may involve the inlet or outlet connection, thread dimensions, valve-body proportions, handwheel design or color, identification markings and packaging. Customers can also provide their target-market technical requirements so that the proposed configuration can be reviewed before sampling and production.
Information for a Product Proposal
To assess a project efficiently, please share the gas application, cylinder connection details, regulator interface, required pressure and flow parameters, destination market and estimated quantity. A drawing or sample helps us review the connection geometry and overall arrangement. Any required national standard or certification should also be identified for review as part of the project specification.
This Brazil-type LPG cylinder valve combines a brass body and aluminum handwheel in a manual configuration with an integrated pressure-relief device. Shanghai Luzhen supports model selection, sample development and supply for customers seeking a valve suited to their South American cylinder program. Send us your specifications, drawing or sample to discuss the next step.
