Cylinder Making Machine
At LUZHEN, in addition to supplying a wide range of high-quality gas cylinders, we also provide complete, start-to-finish cylinder making machine for cylinder manufacturing. Our comprehensive line primarily includes the following equipment, which together form a seamless gas cylinder manufacturing system: Steel Disc Blanking Line, Gas Cylinder Hydraulic Deep Drawing Machine, Circumferential Welding Machine, Heat Treatment Furnace for LPG Cylinder, LPG Gas Cylinder Hydro Testing Line, LPG Cylinder Shot Blasting Machine, LPG Cylinder Powder Coating Line, LPG Cylinder Air Leakage Testing Machine, X-ray Testing Equipment for Gas Cylinder, LPG Gas Cylinder Hydraulic Burst Pressure Tester, etc.
Here, we will focus on introducing our Circumferential Welding Machine and LPG Cylinder Shot Blasting Machine. Should you be interested in any of the other equipment, please feel free to consult with us at any time.
Your Professional Cylinder Making Machine Supplier
SHANGHAI LUZHEN SCM CO.,LTD, a trusted exporter specializing in high-quality steel products for global industrial and consumer applications. Our core offerings include cold-rolled, hot-rolled, and galvanized steel coils-ideal for automotive and home appliance manufacturing-as well as stainless and carbon steel discs used in hardware and kitchenware production. Complementary auxiliary materials are available to support seamless integration into your operations.
Why Choose Us
High-Quality & Diversified Products
We supply high-quality steel products (including cold-rolled, hot-rolled, galvanized coils, and steel blanks), gas cylinders, various types of valves, and supporting materials.
Efficient Cross-Border Supply Chain
Our mature global supply chain ensures swift response and reliable on-time delivery, reducing your waiting costs.
Rigorous Quality Control & Acceptance Procedures
Built on the "Quality as Foundation" principle, our rigorous control system ensures reliable product quality from sourcing to delivery.
Mature Market Experience & Considerate Service
We provide dependable supply chain support to key industries across 30+ countries, ensuring stability for our partners in manufacturing, energy, and public utilities.
Advantages of Cylinder Making Machine
Exceptional Precision
CNC and automated machines ensure perfect alignment, concentricity, and strict adherence to geometric tolerances.
01
Cost and Time Efficiency
Rapid production cycles and automated part handling significantly reduce manual labor and reduce overall material waste.
02
High Durability & Performance
Machine-manufactured cylinders maintain superior structural integrity, leading to smoother operation, longer service life, and lower risk of equipment failure.
03
Specialized Capability
Cylinder-mould paper machines can seamlessly build up pulp layers required for thicker, stiffer materials like cardboard and specialty packaging.
04
Scalability
They offer the flexibility to adapt to varying bore sizes, stroke lengths, and pressure requirements across different manufacturing applications.
05
Components of Cylinder Making Machine
Uncoiling & Cutting Machine: Feeds, levels, and cuts heavy steel coils into precise circular blanks.
Deep Drawing Hydraulic Press: Presses the flat metal blanks into the distinct upper and lower "domes" or halves of the cylinder.
Hole Punching Machine: Pierces the required openings into the upper dome for valve assembly.
Valve Seat (Socket) Welding Machine: Automatically welds the valve boss/collar to the top of the cylinder using high-capacity welding units and mechanical arms.

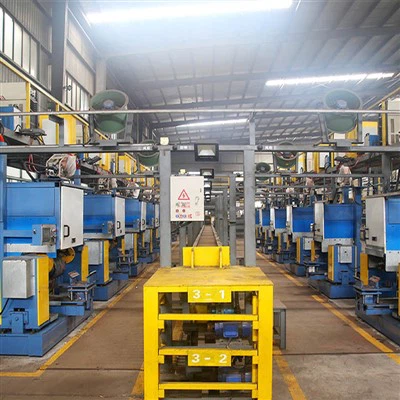

Circumferential Seam Welder: Fuses the upper and lower cylinder halves together along the central horizontal line.
Bottom Base Welding Machine: Attaches the cylindrical foot ring (base) to the bottom of the cylinder.
Trimming & Polishing Units: Machines the welded edges and polishes the surfaces to guarantee structural integrity and smooth finishing.
Testing & Painting: Includes hydrostatic pressure testing equipment (to ensure it can withstand high pressure), leak detection stations, and automated drying and painting lines.
Process of Cylinder Making Machine
Step 1: Receiving and Inspecting Raw Materials
The process begins with raw materials, primarily steel, which arrive in bulk at the manufacturing facility.
Step 2: Machining – Precision Above All Else
After the QA checks, the raw material moves to the CNC machining stations. Here, the material undergoes lathing, milling, and drilling to transform it into finely tuned components like tubes, rods, and end caps.
Step 3: Welding – Fusing Strength
Following machining, individual components move to the welding stations, where they are expertly assembled into a cylinder body. MIG and TIG welding, along with robotic welders, ensure strong, durable joints that can withstand extreme pressures.
Step 4: Assembly – Bringing it All Together
Once the individual components are complete, the hydraulic cylinder is ready for assembly. Skilled technicians fit seals, rods, and other elements into the cylinder body while ensuring all parts remain contamination-free.
Step 5: Rigorous Testing – One Cylinder Fit for All
One of the most critical stages in the production process is testing. every cylinder undergoes pressure testing at 1.5 times operating capacity—up to 7500 PSI—to ensure durability and reliability under extreme conditions.
Step 6: Coating and Customization
Now that the manufactured cylinder has been tested, it’s prepared for environmental longevity and visual appeal through the painting process.
Step 7: Packaging and Shipping
Finally, the finished hydraulic cylinders are meticulously packaged and prepared for shipment. Whether destined for an OEM, distributor, or field mechanic, each cylinder includes clear labeling and accompanying documents like specs and test reports.
Maintain of Cylinder Making Machine
Regular Inspection
Regular checkups are to be made to detect the wear or damage at an early stage. Seals, rods and connections are some of the components that need to be routinely examined.
Keep Hydraulic Fluid Clean
Oil is essential in efficient operation, clean oil. Oil pollution may cause internal components to be damaged and compromised the performance of industrial hydraulic systems.
Check for Leaks
Leaks are to be repaired in order to avoid the pressure loss and additional damage. Minor leaks may influence efficiency of the system.
Proper Lubrication
Friction and wear should be minimized by ensuring that moving parts are well lubricated.
Monitor Operating Conditions
Monitoring of temperature, pressure and load should be done to make sure that the cylinder is running within safe limits.
