Gas Cylinder Flange
Your Professional Gas Cylinder Flange Supplier
SHANGHAI LUZHEN SCM CO.,LTD, a trusted exporter specializing in high-quality steel products for global industrial and consumer applications. Our core offerings include cold-rolled, hot-rolled, and galvanized steel coils-ideal for automotive and home appliance manufacturing-as well as stainless and carbon steel discs used in hardware and kitchenware production. Complementary auxiliary materials are available to support seamless integration into your operations.
Why Choose Us
High-Quality & Diversified Products
We supply high-quality steel products (including cold-rolled, hot-rolled, galvanized coils, and steel blanks), gas cylinders, various types of valves, and supporting materials.
Efficient Cross-Border Supply Chain
Our mature global supply chain ensures swift response and reliable on-time delivery, reducing your waiting costs.
Rigorous Quality Control & Acceptance Procedures
Built on the "Quality as Foundation" principle, our rigorous control system ensures reliable product quality from sourcing to delivery.
Mature Market Experience & Considerate Service
We provide dependable supply chain support to key industries across 30+ countries, ensuring stability for our partners in manufacturing, energy, and public utilities.

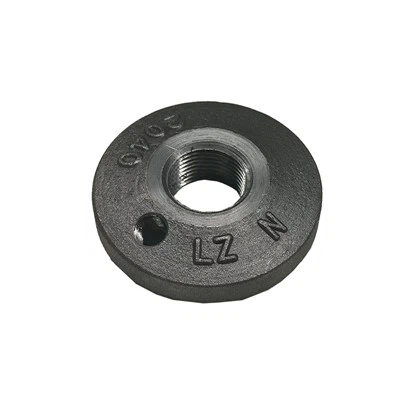

Gas Cylinder Flange
Leak-Proof Containment
Flanges use gaskets and bolts to create an airtight seal, preventing hazardous leaks of flammable, toxic, or high-pressure gases.
01
Easy Valve Attachment
They provide a sturdy base with standardized threading to easily attach and remove valves without needing to cut or weld the tank itself.
02
High Structural Strength
Flanges reinforce the opening of the pressure vessel, helping it safely manage significant internal pressure and external stresses.
03
Modular Maintenance
Allows for quick swapping of valves, gauges, and safety devices without compromising the integrity of the cylinder tank.
04
Regulatory Compliance
Designed to meet stringent safety codes, ensuring valves and protective devices fit securely during transportation and use.
05
The Different Types of Gas Cylinder Flanges
A gas cylinder flange is an essential component of the machinery that helps the oil and gas industry operate efficiently.gas cylinder flange They are used to connect pipes and other equipment, forming a solid and leak-proof seal. They are also useful for making the piping system more durable, helping it withstand increased pressure and temperatures. Additionally, flanges make it easy for maintenance workers to access areas that need repairs, ensuring that problems are fixed quickly.
There are many different types of flanges, and the type you need depends on the fluid you're transporting, its operating temperature and pressure levels, and the presence of any corrosive substances.gas cylinder flange You should consult a piping engineer or a flange manufacturer to determine the best type of flange for your specific needs.
Stainless steel is the most common material for a gas flange, and it's highly resistant to corrosion. This makes it a great choice for use in a variety of environments. You can also find flanges made from other materials, including aluminum and carbon steel. The type of flange you choose will depend on the environment in which it's being used and the pressure and size capacity you need.
Another popular type of flange is the weld neck flange, which features a recognizable tapered hub and can be attached to pipes with a butt weld. These flanges are ideal for environments with high-pressure levels, as they can withstand much higher pressure levels than other types of flanges.
Slip-on flanges are similar to weld neck flanges, but they're typically used in low-pressure systems. These flanges can be connected to pipes by using a slip fit or by welding them in place. They're also useful for testing and maintenance purposes, as they can be removed easily without requiring the removal of any other equipment.
Another option is the lap joint flange, which is commonly used in duct systems. This flange is composed of a lap joint stub end and a backing lap joint flange. Lap joint flanges are also known as backup flanges or loose hubbed flanges. They're suitable for mid-pressure systems, and they can be installed with a single fillet weld.
Gas Cylinder Flange making process
Flange Manufacturing ProcessFlanges for gas cylinders are typically produced via precision machining or forging to ensure durability and high pressure-holding capacity.
Blanking & Cutting: Metal (steel or brass) is cut into blocks or blanks.Machining (CNC): Blanks are milled, turned on a lathe, and bored to size.
Threading: The flange is machined with specialized threads (e.g., metric or BSP) to accept the gas valve.Grooving: Internal grooves are turned for sealing rings or O-rings.
Cylinder Installation ProcessPreparation: A hole is pierced or stamped into the top dome (or head) of the gas cylinder.
Welding (Boss/Flange): The flange is inserted into the concave side of the dome and securely welded (typically using automated MIG or TIG).
Heat Treatment & Testing: The assembly is heat-treated to relieve welding stress, and then undergoes hydrostatic testing to ensure leak-tightness.
Usage & Connection ProcessWhen connecting equipment to a gas cylinder flange, strict procedures must be followed:
Inspection: Threads on the flange and valve must be clean, free of oil/grease, and undamaged.
Securing: The cylinder is firmly secured in a vertical position using chains or a trolley.Tightening: The valve or regulator is screwed into the flange and tightened smoothly to achieve a gas-tight seal.
FAQ
As one of the most professional gas cylinder flange manufacturers and suppliers in China, we're featured by quality products and good price. Please rest assured to buy bulk discount gas cylinder flange from our factory. We also accept customized orders.
gas cylinder flange, Cylinder Neck Ring, expansion flange
